Certifications: CE, UKCA, cETLus
1 / 2

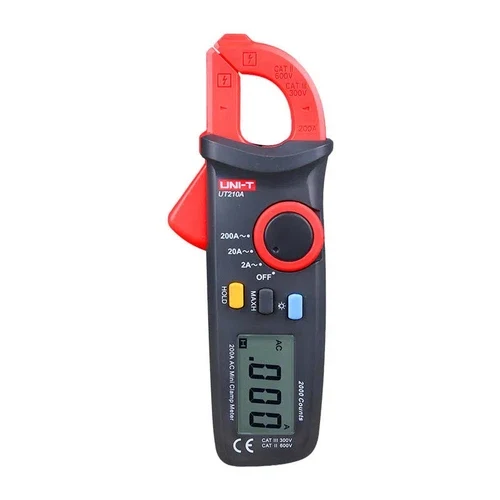

Clamp Meter Mini AC UT210 Uni-Trend
● Ergonomic and lightweight
● Auto range, 2~3 times/s sampling rate
● LCD backlight, data hold
● Auto power off, low battery indication
Specifications of UT210 Series Mini Clamp Meters
| Specifications | Range | UT210A | UT210B | UT210C | UT210D | UT210E |
| AC current (A) | 200A | ±(2.5%+20) | ±(2.5%+20) | ±(2%+10) | ±(2.5%+8) | |
| 100A | ±(2.5%+5) | |||||
| DC current (A) | 200A | ±(2%+3) | ||||
| 100A | ±(2%+3) | |||||
| AC voltage (V) | 600V | ±(1%+3) | ±(1%+3) | ±(1%+3) | ||
| DC voltage (V) | 600V | ±(0.7%+3) | ±(0.7%+3) | ±(0.7%+3) | ||
| Resistance (Ω) | 20MΩ | ±(1%+2) | ±(1%+2) | ±(1%+2) | ||
| Frequency (Hz) | 60kHz | ±(0.1%+4) | ||||
| Capacitance (F) | 20mF | ±(4%+5) | ±(4%+5) | ±(4%+5) | ||
| Temperature | -40~1000℃ | ±(1%+3) | ±(1%+3) | |||
| -40~1832℉ | ±(1.5%+5) | ±(1.5%+5) | ||||
| Features | ||||||
| Display count | 2000 | 2000 | 2000 | 2000 | 2000 | |
| Continuity buzzer | √ | √ | √ | √ | √ | |
| Auto range | √ | √ | √ | |||
| Jaw opening | 16mm | 16mm | 17mm | 17mm | 17mm | |
| Diode test | Around 3.0V | √ | √ | √ | ||
| General Characteristics | ||||||
| Power | 1.5V battery (R03) x 2 | |||||
| Display | 39.3mm x 26.5mm | |||||
| Product color | Red and grey | |||||
| Product net weight | UT210A/B: 150g (batteries included); UT210C/D/E: 170g | |||||
| Product size | UT210A/B: 158mm x 60mm x 33.5mm; UT210C/D/E: 175mm x 60mm x 33.5mm | |||||
| Standard accessories | Batteries, test leads (UT210C/UT210D/UT210E), point contact temperature probe (UT210C/UT210D) | |||||
| Standard individual packing | Gift box, English manual, carrying bag (UT210C/UT210D/UT210E) | |||||
| Standard quantity per carton | 40pcs | |||||
| Standard carton measurement | UT210A/B: 345mm x 245mm x 300mm; UT210C/D/E: 385mm x 345mm x 305mm | |||||
| Standard carton gross weight | UT210A/B: 8kg; UT210C: 14.8kg; UT210D: 8.2kg; UT210E: 13.6kg | |||||
Certifications: CE, UKCA, cETLus
● Ergonomic and lightweight
● Auto range, 2~3 times/s sampling rate
● LCD backlight, data hold
● Auto power off, low battery indication
Specifications of UT210 Series Mini Clamp Meters
| Specifications | Range | UT210A | UT210B | UT210C | UT210D | UT210E |
| AC current (A) | 200A | ±(2.5%+20) | ±(2.5%+20) | ±(2%+10) | ±(2.5%+8) | |
| 100A | ±(2.5%+5) | |||||
| DC current (A) | 200A | ±(2%+3) | ||||
| 100A | ±(2%+3) | |||||
| AC voltage (V) | 600V | ±(1%+3) | ±(1%+3) | ±(1%+3) | ||
| DC voltage (V) | 600V | ±(0.7%+3) | ±(0.7%+3) | ±(0.7%+3) | ||
| Resistance (Ω) | 20MΩ | ±(1%+2) | ±(1%+2) | ±(1%+2) | ||
| Frequency (Hz) | 60kHz | ±(0.1%+4) | ||||
| Capacitance (F) | 20mF | ±(4%+5) | ±(4%+5) | ±(4%+5) | ||
| Temperature | -40~1000℃ | ±(1%+3) | ±(1%+3) | |||
| -40~1832℉ | ±(1.5%+5) | ±(1.5%+5) | ||||
| Features | ||||||
| Display count | 2000 | 2000 | 2000 | 2000 | 2000 | |
| Continuity buzzer | √ | √ | √ | √ | √ | |
| Auto range | √ | √ | √ | |||
| Jaw opening | 16mm | 16mm | 17mm | 17mm | 17mm | |
| Diode test | Around 3.0V | √ | √ | √ | ||
| General Characteristics | ||||||
| Power | 1.5V battery (R03) x 2 | |||||
| Display | 39.3mm x 26.5mm | |||||
| Product color | Red and grey | |||||
| Product net weight | UT210A/B: 150g (batteries included); UT210C/D/E: 170g | |||||
| Product size | UT210A/B: 158mm x 60mm x 33.5mm; UT210C/D/E: 175mm x 60mm x 33.5mm | |||||
| Standard accessories | Batteries, test leads (UT210C/UT210D/UT210E), point contact temperature probe (UT210C/UT210D) | |||||
| Standard individual packing | Gift box, English manual, carrying bag (UT210C/UT210D/UT210E) | |||||
| Standard quantity per carton | 40pcs | |||||
| Standard carton measurement | UT210A/B: 345mm x 245mm x 300mm; UT210C/D/E: 385mm x 345mm x 305mm | |||||
| Standard carton gross weight | UT210A/B: 8kg; UT210C: 14.8kg; UT210D: 8.2kg; UT210E: 13.6kg | |||||
$46.96
Clamp Meter Mini AC UT210 Uni-Trend—
$46.96
Description
Certifications: CE, UKCA, cETLus
● Ergonomic and lightweight
● Auto range, 2~3 times/s sampling rate
● LCD backlight, data hold
● Auto power off, low battery indication
Specifications of UT210 Series Mini Clamp Meters
| Specifications | Range | UT210A | UT210B | UT210C | UT210D | UT210E |
| AC current (A) | 200A | ±(2.5%+20) | ±(2.5%+20) | ±(2%+10) | ±(2.5%+8) | |
| 100A | ±(2.5%+5) | |||||
| DC current (A) | 200A | ±(2%+3) | ||||
| 100A | ±(2%+3) | |||||
| AC voltage (V) | 600V | ±(1%+3) | ±(1%+3) | ±(1%+3) | ||
| DC voltage (V) | 600V | ±(0.7%+3) | ±(0.7%+3) | ±(0.7%+3) | ||
| Resistance (Ω) | 20MΩ | ±(1%+2) | ±(1%+2) | ±(1%+2) | ||
| Frequency (Hz) | 60kHz | ±(0.1%+4) | ||||
| Capacitance (F) | 20mF | ±(4%+5) | ±(4%+5) | ±(4%+5) | ||
| Temperature | -40~1000℃ | ±(1%+3) | ±(1%+3) | |||
| -40~1832℉ | ±(1.5%+5) | ±(1.5%+5) | ||||
| Features | ||||||
| Display count | 2000 | 2000 | 2000 | 2000 | 2000 | |
| Continuity buzzer | √ | √ | √ | √ | √ | |
| Auto range | √ | √ | √ | |||
| Jaw opening | 16mm | 16mm | 17mm | 17mm | 17mm | |
| Diode test | Around 3.0V | √ | √ | √ | ||
| General Characteristics | ||||||
| Power | 1.5V battery (R03) x 2 | |||||
| Display | 39.3mm x 26.5mm | |||||
| Product color | Red and grey | |||||
| Product net weight | UT210A/B: 150g (batteries included); UT210C/D/E: 170g | |||||
| Product size | UT210A/B: 158mm x 60mm x 33.5mm; UT210C/D/E: 175mm x 60mm x 33.5mm | |||||
| Standard accessories | Batteries, test leads (UT210C/UT210D/UT210E), point contact temperature probe (UT210C/UT210D) | |||||
| Standard individual packing | Gift box, English manual, carrying bag (UT210C/UT210D/UT210E) | |||||
| Standard quantity per carton | 40pcs | |||||
| Standard carton measurement | UT210A/B: 345mm x 245mm x 300mm; UT210C/D/E: 385mm x 345mm x 305mm | |||||
| Standard carton gross weight | UT210A/B: 8kg; UT210C: 14.8kg; UT210D: 8.2kg; UT210E: 13.6kg | |||||
