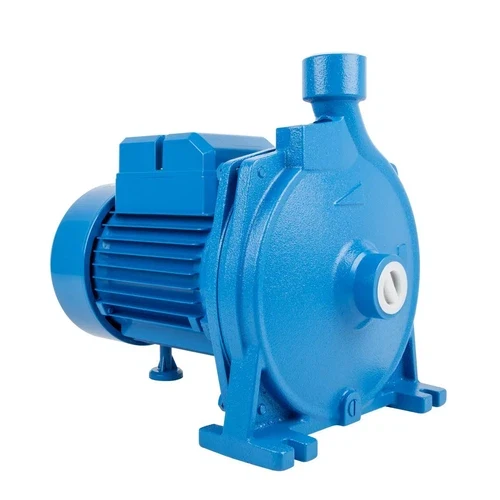

Centrifugal Pump Single Impeller 230๐ Pascali ยป
Single impeller centrifugal pumps, suitable for household, civil and industrial applications, with a very flat curve to guarantee constant pressure even when the delivery is low.
OPERATING CONDITIONS
- - Liquid temperature up to 60ยฐC
- - Ambient temperature up to 40ยฐC
- - Total suction lift up to 7 m
- - Max. working pressure: 6 bar MOTOR
- - 2-Pole induction motor
- - Insulation Class B
- - Protection IP44 MATERIALS
- - Pump body
- - Cast Iron
- - Motor support
- - Cast Iron
- - Impeller - Brass
- - Motor shaft - S/Steel or CS45#
- - Mechanical seal - Ceramic/Graphite
- - Copper winding
ย
Single impeller centrifugal pumps, suitable for household, civil and industrial applications, with a very flat curve to guarantee constant pressure even when the delivery is low.
OPERATING CONDITIONS
- - Liquid temperature up to 60ยฐC
- - Ambient temperature up to 40ยฐC
- - Total suction lift up to 7 m
- - Max. working pressure: 6 bar MOTOR
- - 2-Pole induction motor
- - Insulation Class B
- - Protection IP44 MATERIALS
- - Pump body
- - Cast Iron
- - Motor support
- - Cast Iron
- - Impeller - Brass
- - Motor shaft - S/Steel or CS45#
- - Mechanical seal - Ceramic/Graphite
- - Copper winding
ย
Select Nominal Duty Point
From $103.02
Centrifugal Pump Single Impeller 230๐ Pascali ยปโ
$103.02
Description
Single impeller centrifugal pumps, suitable for household, civil and industrial applications, with a very flat curve to guarantee constant pressure even when the delivery is low.
OPERATING CONDITIONS
- - Liquid temperature up to 60ยฐC
- - Ambient temperature up to 40ยฐC
- - Total suction lift up to 7 m
- - Max. working pressure: 6 bar MOTOR
- - 2-Pole induction motor
- - Insulation Class B
- - Protection IP44 MATERIALS
- - Pump body
- - Cast Iron
- - Motor support
- - Cast Iron
- - Impeller - Brass
- - Motor shaft - S/Steel or CS45#
- - Mechanical seal - Ceramic/Graphite
- - Copper winding
