Borehole Motor 4" DC/AC DAB
Kit Includes
- Solar Motor M220SOL (60197253)

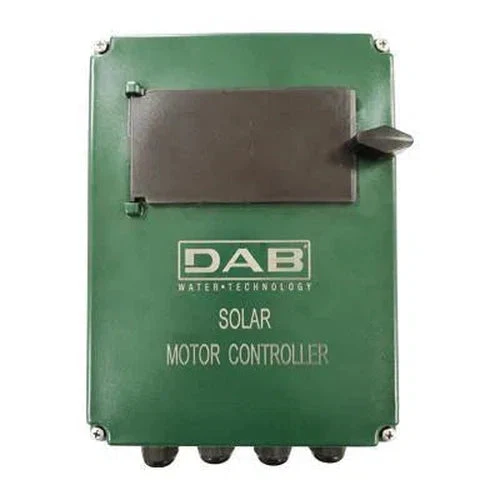

- Solar Controller (60197257)
Booklet
The DAB Solar Motor consists of a submersible pump with a permanent magnet motor and integrated electronics. A VFD (variable frequency drive, integrated into the motor) and controller that allows the pump to be powered by photovoltaic panels (solar collectors) or an AC power supply. Switching on one or the other automatically. Thanks to these characteristics it is possible to use the pump in every part of the world, even in the most remote areas
- Flows up to 21m3/h
- M220SOL – 0.37 to 2.2kW (90V starting, 150m Pump Head Max)
Horizontal Installation: Minimum 5o angle and bleed hole in upright position
Max input limit:
- DC: 90 – 440Voc; 12A
- 90 – 440Voc; (H version)
- AC: 90 – 280V; 10A
- Max power output (P2): 2200W
- Max speed: 3000rpm
- Max water temp: 40oC
